9mm thickness led edge-lit panel Slim Panel Light 595*595 48W

Product ID:1024247
weight:412.00g
Shelf time:2018-12-20 11:07:19
Description:PAPAGO vehicle traveling data recorder full 1080 p hd wide dynamic image processing technology

EMAIL

Description

Features :



1.Energy saved up to 50%.high brightness,even lighting output.



2. Wide range of input voltage:AC100-240V.



3. No electrical wave,conforming to CE.



4. Green environmental protection,lead-free material,conforming to ROHS.



5  No RF interference.



6.High lumen,high CRI SMD light source with high efficiency above 90lm/W.



7.Good quality profile aluminum white painting frame,more fashionable.



8.High quality Lifud driver,5 years warranty.



9.Driver pass CCC,CE,TUV,SAA,UL certification.



10.New design no light leak from back plate.

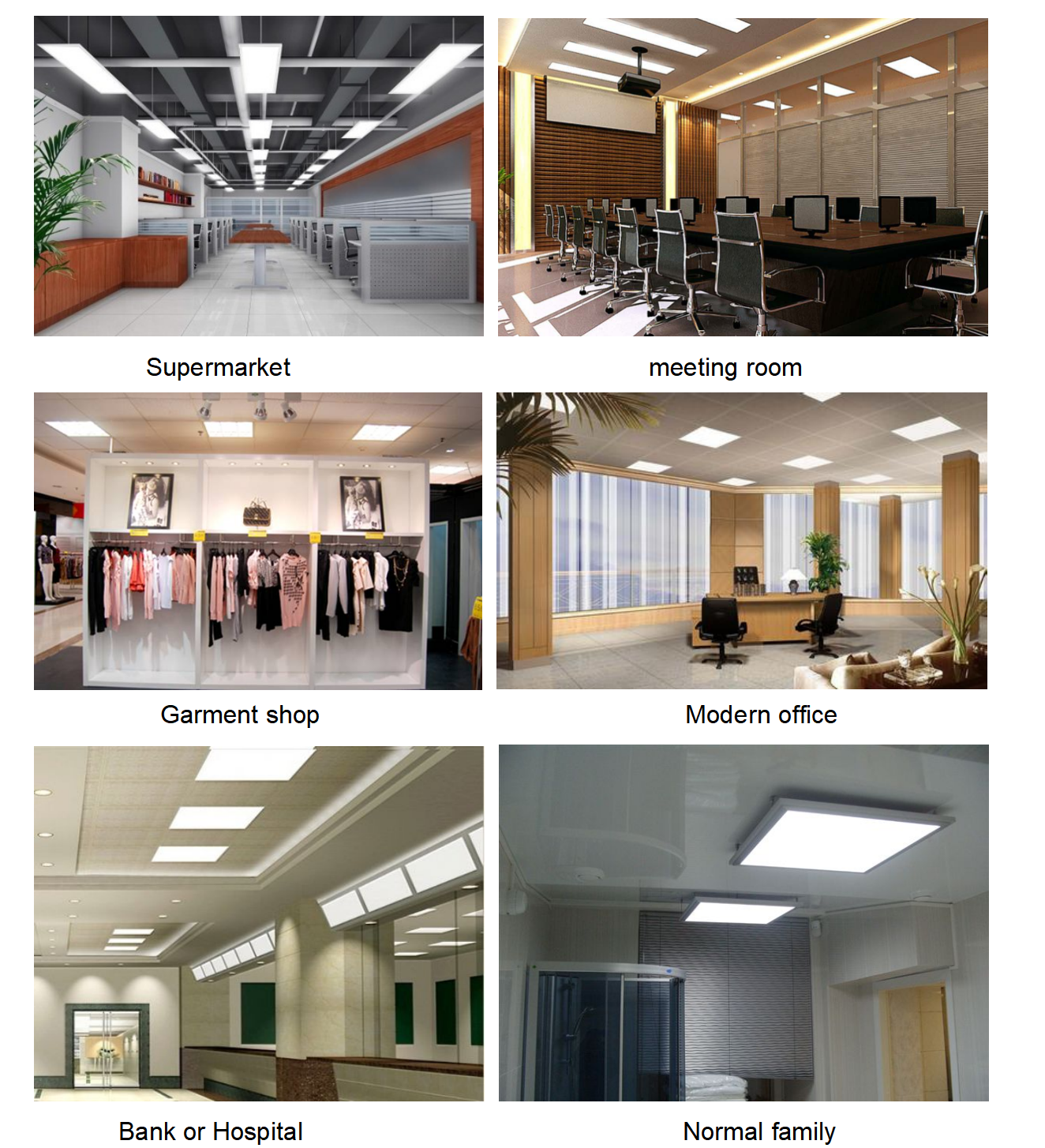

Applications:



Hotels ,hospitals ,banks,shopping mall , living room ,subways ,living room ,reading room,



conference / meeting rooms , factories ,offices / museums,residential / institution



buildings,schools,colleges&universities...etc ,places where energy saving and high



brightness required.


NO.

ITEM

DESCRIPTION

01

Input Voltage

AC100-240V

02

LED Power

40W

03

Luminous Flux

3600Lm

04

LED Type

SMD2835

05

LED Qty

192 pcs

06

Color Temperature

6000K

07

Life time

50,000 Hours

08

Operating Temperature

-10℃to+40℃

09

Storage Temperature

-20℃to+85℃

10

Humidity Operating

10-90%

11

Humidity Storage

10-90%

12

Luminosity

>13000 LUX

13

2.0M Luminosity

>342 LUX

14

Certifications

CCC,CE,SAA,TUV,SAA,UL

15

Weight

3.6KG

16

Size

595x595x9mm

17

IK Code

IK01

18

IP Code

IP20

19

Luminaires Class

Class II

20

Fixing Ways

Built in, Mounting, Suspending

21

Inner Box Size

0.66*0.645*0.035m

22

Package

5pcs/ctn

23

Outer Carton Size

0.68*0.66*0.20m

24

G.Weight

16kg
